Sylentia R290
The new series of innovative, inverter, eco-friendly and super-quiet heat pumps with natural R290 refrigerant, produced entirely in Cosmogas factories.
With a refined design, they integrate into the architecture of houses with their clean lines and the smoky black colour of the coat, finding harmony in all contexts.

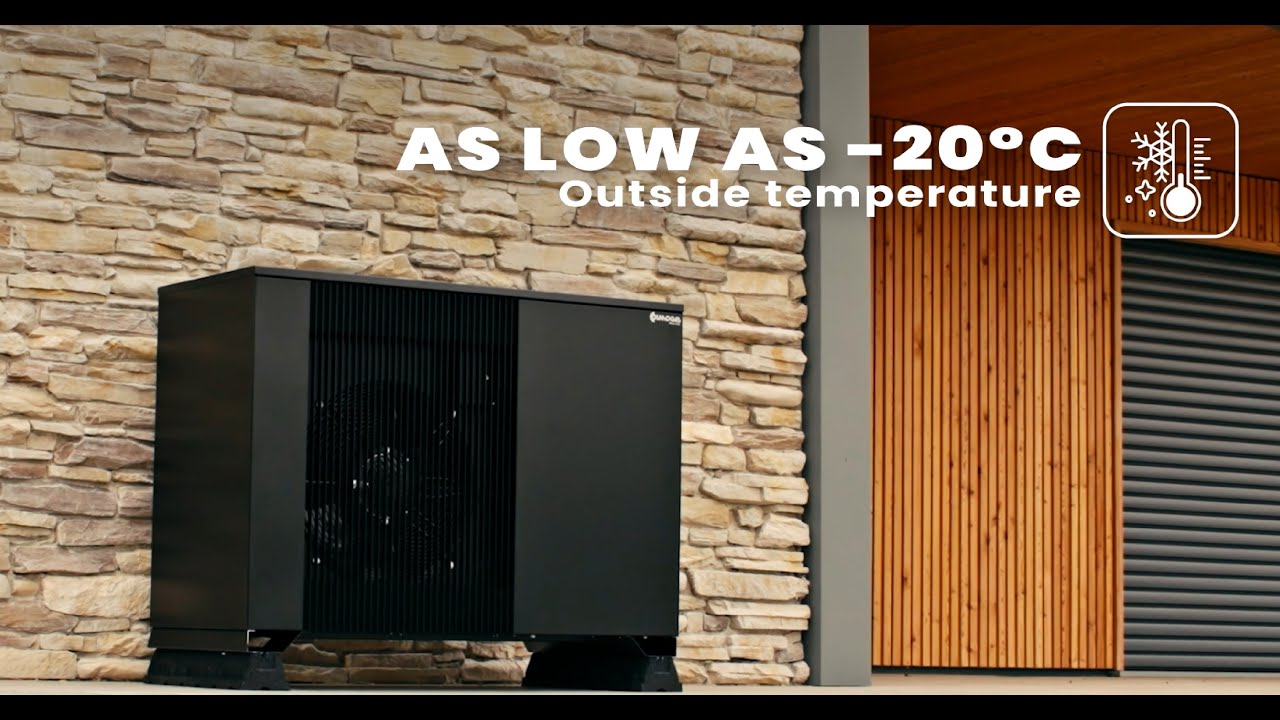

They stand out for being even quieter, up to 38 dB(A) of sound power for Sylentia 8M R290 and 13M R290 models, even more performing, with COP of 5.00 at 7/35°C and with a high working range: with external air temperatures of -20°C they reach delivery temperatures of 60°C and with external air temperatures of -12°C up to 75°C delivery. This allows the connection of Sylentia R290 even in radiator systems.
Features
Product category: Inverter heat pump with natural R290 refrigerant
Output: 8 - 13 - 20 kW max heating (A7/W35) | 9 - 14 - 21 kW max cooling (A35/W18)
Suited for: Residential and Commercial
Thermal comfort evolution
Made in Cosmogas
The new Sylentia R290 Heat Pumps are designed and manufactured by Cosmogas which confirms its commitment to innovation and sustainability, offering advanced solutions for the heating industry of the future.
Italian excellence redefining thermal comfort while respecting the environment.
Password: Silence!
- QUIETNESS: SYNONYMOUS WITH COMFORT
Much attention was paid to acoustic comfort, achieving sound emissions of only 38 dB(A)*. We adopted inverter fans of oversized diameter with silenced and balanced blade profiles installed on a support with an aerodynamic profile specially designed by the R&D department to reduce the noise of incoming and outgoing airflow. Furthermore the new-generation ‘Scroll’ type compressor is soundproofed with a special high-density sound-absorbing cladding.
- FLOATING FRAME: VIBRATIONS UNDER CONTROL
Sylentia R290 uses a double floating frame to reduce vibrations and improve the quietness during operation, thus creating a comfortable and disturbance-free environment: the first frame supports the plate heat exchanger including the pump and the hydraulic assembly, and also supports the second one, which houses the compressor.
- ‘HIGH SILENT’ FUNCTION FOR A WELL-DESERVED REST
Sylentia R290 is equipped with ‘High Silent’ function. When the ‘High Silent’ function is activated, the sound pressure can be reduced to the desired value at times of your choice (up to 13 dB(A) at 10 meters distance*).
* Referred to Sylentia 8M R290 and 13M R290.
Versatility, accessibility
and easy maintenance
All Sylentia R290 air-to-water heat pumps can be installed in all heating, cooling and domestic hot water systems.
They are easy to install as they can be placed on the floor or fixed to the wall by specialised brackets and connected to the heating or cooling system with insulated supply and return piping.
Sylentia R290 heat pumps are equipped with a completely removable casing, which provides three major advantages:
- EASE OF INSTALLATION
- EASE OF CLEANING AND MAINTENANCE
- POSSIBILITY FOR THE USER TO REPAINT THE PANELS
A complete range capable of covering all requirements with various modulating models:
- Sylentia 8M and 13M R290 single-phase version
- Sylentia 13T and 20T R290 three-phase version
Natural R290 refrigerant
low-impact on the environment
The new Sylentia R290 heat pumps are environmentally friendly and efficient. But what makes them special?
Our new Sylentia R290 heat pumps use in their refrigeration circuit a natural R290 refrigerant (propane), which with 3 GWP, far lower than the R32 or R410A ones, places these heat pumps among those with the lowest environmental impact.
According to the IPCC AR6 report (Intergovernmental Panel on Climate Change, Sixth Assessment Report) which represents the most recent global assessment on climate change, the GWP100, (i.e. the global warming potential of a greenhouse gas, compared to the amount of CO2 over 100 years) of the natural R290 refrigerant, is equal to 0,02, this means that R290 has almost no impact on climate change and these heat pumps are the most efficient and eco-friendly choice.
Quality tested in all conditions
Thanks to our new proprietary in-house Climatic Chamber, capable of reproducing temperatures ranging from -20°C to +55°C, all the heat pumps, including the new Sylentia R290, can be designed and tested to achieve real efficient products, in every possible climatic condition.
With total control over quality and performance, Cosmogas is committed to ensuring that its heat pumps perform at their maximum capacity, offering customers maximum energy efficiency and comfort, regardless of the climatic challenges they face.
Comodo and Cosmo+
control at your fingertips
Sylentia R290 heat pumps are equipped as standard with Comodo an elegant and innovative Wi-Fi advanced chrono control. The user can comfortably adjust and control the room temperature from inside the house on the 5” touch screen display at various levels and for different time slots throughout the day and week. As with the heating functions, it can also programme the production of domestic hot water and the dynamic antilegionella cycle.
To complete Comodo and make it even “smarter”, Cosmo+ has been developed, a special App, very useful for users who prefer to manage their system from their smartphone and thus have the possibility to remotely monitor the comfort of their home.
With a special focus to reducing environmental impact, through the Cosmo+ App, the Service Centre can take action remotely; the result is an advantage in terms of travel time and costs saved, but above all less CO2 released into the atmosphere.
Discover all the advantages of Sylentia R290 heat pump
Details that make the difference
“ON LINE” energy flows
and electricity consumption
Either via the Comodo chrono control or via the Cosmo+ App it is possible to monitor the electricity absorbed and energy flows consumed by the Sylentia R290 and the system.
The user is informed by day, week, month, year, about these important values and can activate changes all to take advantage of efficiency and savings.
The user is informed by day, week, month, year, about these important values and can activate changes all to take advantage of efficiency and savings.
“Syn Check”
refrigeration circuit quick check
It is a real heating and cooling powerhouse that can be consulted with the ‘Syn Check’ synoptic panel with which the Comodo chrono control of Sylentia R290 is equipped.
It records operating parameters and the status of all components involved in the heating/cooling/domestic hot water operations.
It records operating parameters and the status of all components involved in the heating/cooling/domestic hot water operations.
Energy Saving (PCR)
consumption optimisation
Sylentia R290 heat pumps are equipped as standard with the PCR (Power Consumption Reduction) function. When active, it reduces the absorbed electrical power (as modern induction hobs do), thus avoiding the risk of interruption due to power overload when several appliances are used at the same time.
“No Ice”
high seasonal efficiency
Thanks to the generous 2,5 mm fin spacing, the ice that forms within the fins of the coil during the winter period does not block the passage of air.
This reduces defrost cycles to almost zero and increases efficiency, economy and comfort levels during the harshest part of the winter season.
This reduces defrost cycles to almost zero and increases efficiency, economy and comfort levels during the harshest part of the winter season.
Made in Italy
electronics
The brain of Sylentia R290 is CIMA (Cosmogas Integrated Modular Architecture), the new electronic platform designed and manufactured in Italy to Cosmogas specifications.
Equipped with modern and powerful microprocessors for controlling all the Sylentia R290 inverters, it communicates with the Comodo chrono control and is compatible with the most popular domotics systems.
Among its many functions, the FV link system (connection to photovoltaic system) allows the self-consumption of any surplus energy produced by the photovoltaic panels.
Equipped with modern and powerful microprocessors for controlling all the Sylentia R290 inverters, it communicates with the Comodo chrono control and is compatible with the most popular domotics systems.
Among its many functions, the FV link system (connection to photovoltaic system) allows the self-consumption of any surplus energy produced by the photovoltaic panels.
“Polar” Protection
safe even in winter
The Sylentia R290 is an air-to-water heat pump equipped with two electrical heaters.
One standard heater is located on the plate heat exchanger. The second heater, on demand, is a convenient heating cable to protect the section of piping that exits the unit and enters the home.
One standard heater is located on the plate heat exchanger. The second heater, on demand, is a convenient heating cable to protect the section of piping that exits the unit and enters the home.
Convenient and safe
condensate drain
An entirely stainless steel condensate drip tray, with central drain, is available on demand, to be installed under the heat pump to channel the condensate water.
The drip tray comes complete with an antifreeze heater that prevents clogging of the oversized condensate drain.
The drip tray comes complete with an antifreeze heater that prevents clogging of the oversized condensate drain.
Ideal customisation:
choose accessories on demand
For proper operation of the Sylentia R290, we recommend the installation of a magnetic filter, a differential by-pass valve and a condensate drip tray.
In addition, to ensure the minimum space required under the heat pump and to absorb any vibrations and noise, anti-vibration mounts made of recycled SBR rubber with an aluminium profile and hollowed-out bottom for water drainage are available on demand.
In addition, to ensure the minimum space required under the heat pump and to absorb any vibrations and noise, anti-vibration mounts made of recycled SBR rubber with an aluminium profile and hollowed-out bottom for water drainage are available on demand.
Sylentia R290 Documents
Sei un professionista? Trovi i documenti tecnici per questo prodotto nella sezione Professionisti.
