MYplus
MYplus is the new range of electronically evolved double condensing wall-hung boilers designed to offer maximum performance in any heating system.
Thanks to the CIMA (Cosmogas Integrated Modular Architecture) electronic platform, developed according to strict Cosmogas specifications, MYplus stands out for the use of powerful latest-generation microprocessors and compatibility with the main home automation systems.
With a width of just 30.5 cm, it integrates easily into any space, even in niches or furniture.
Available in two outputs, 24 and 34 kW, and in different configurations (heating and domestic hot water production), MYplus is the technological evolution of home comfort.
Features
Product category: Electronically advanced double condensing wall-hung boilers
Output: 24 - 34 kW
Suited for: Residential
Hot water heat exchanger: Oversized 320 mm, allows double condensing
Connectivity: Management via advanced Wi-Fi Comodo chrono control and Cosmo+ App
Double Condensing all year long
with savings up to 40%
Traditional condensing boilers only run in condensing mode at low temperatures and during heating.
MYplus runs in condensing mode 365 days a year, both in heating and domestic hot water production, because it runs in condensing mode even at high temperatures.
Traditional condensing guarantee savings up to 30% compared to older atmospheric boilers. With MYplus double condensing you can save an additional 10% on domestic hot water production.
Quality patented components
that make the difference
To achieve double condensing it is necessary to have efficient heat exchanges, considerably higher than traditional gas condensing boilers.
MYplus patented heat exchangers have large surfaces that allow condensing already at primary circuit temperatures of 55°C.
This is thanks to the unique R.V.C. heat exchanger which, combined with the oversized secondary heat exchanger, guarantees high performance.
Oversized heat exchanger:
hot water at will
Domestic hot water is produced by an oversized stainless steel plate heat exchanger (W=320 mm) that provides a plentiful and fast supply of domestic hot water.
Moreover MYplus always works in condensing mode, even during domestic hot water supply, reducing consumption and related costs in domestic hot water production by a further 10%*.
* referring to boilers that do not condense during DHW production.
The importance of condensing
in domestic hot water production
Modern habits and lifestyles favoured by the spread of multijet showers, waterfall showerheads and whirlpool baths encourage higher domestic hot water production.
If we consider that domestic hot water is used 365 days a year and at all latitudes, choosing MYplus double condensing means a significant increase in savings.

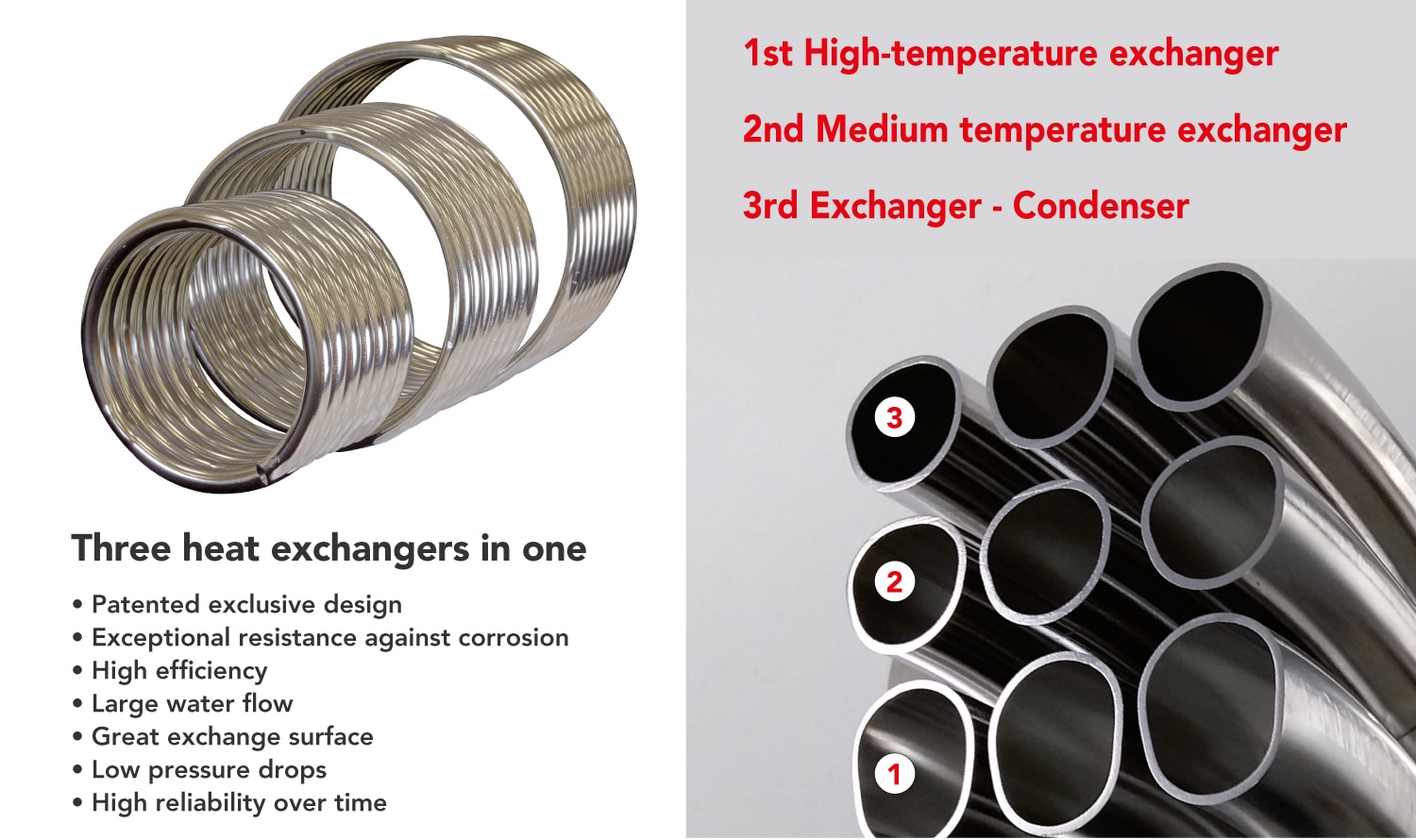

Cosmogas R.V.C. triple heat exchanger:
innovation, efficiency and savings
With our innovative Cosmogas R.V.C. heat exchangers, designed with an exclusive patented design, we offer several advantages for your home:
- Enhanced efficiency: Thanks to the three pipes, the system guarantees fast and constant heating.
- Maximum water quantity: Wide passages and a large exchange surface mean more hot water immediately available.
- Energy savings: Reduced pressure drops improve the efficiency of the system, helping to save energy costs.
- Longer service life: Corrosion resistance ensures long-lasting performance, reducing the need for maintenance.
Comodo is the innovative
remote chrono control
MYplus boilers, on request, can be combined with Comodo, the Wi-Fi advanced chrono control with 5-inch touchscreen display.
Users can adjust the temperature for different time slots and programme functions such as heating, hot water production and the anti-legionella cycle.
Comodo also allows the boiler to be controlled remotely to check system parameters. Operating data are displayed instantaneously on the “Syn Check” synoptic panel.
Comodo belongs to ERP class V appliances and, with an optional external sensor, reaches ERP class VI (European Commission communication 2014/C207/02).

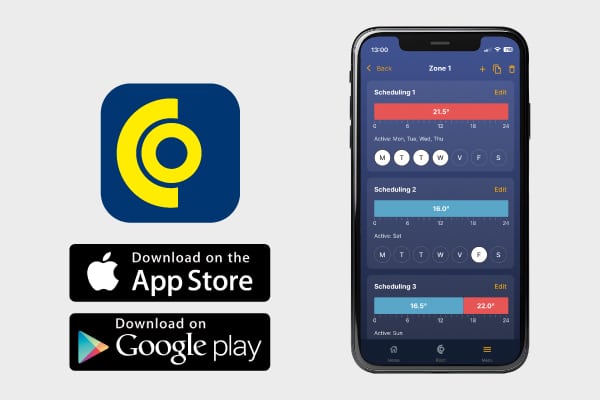

Cosmo+ App
for the most demanding user
To complete the functionalities of Comodo and make it even ‘smarter’, Cosmo+ has been developed. A special App, very useful for users who prefer to manage their facilities from their smartphone and thus have the possibility to remotely monitor the comfort.
With a special focus to reducing the environmental impact, through the Cosmo+ App, the Service Centre can take action remotely (RAM – Remote Asset Monitoring); this results in a benefit in terms of time and travel costs saved, but above all, less CO2 released into the atmosphere.
Details that make the difference
UNDER CONTROL
EVEN OUTDOOR
To install MYplus outdoors, COVER-BOX, the weatherproof, UV-resistant ABS insulated cover, is available as an accessory on demand.
The highly insulating, fireproof polyethylene insulation gives the water heater an IP X5D electrical protection rating and protects it from cold and bad weather.
MYplus is protected against frost as it is automatically activated when regularly powered and the temperature drops below 7°C.
The highly insulating, fireproof polyethylene insulation gives the water heater an IP X5D electrical protection rating and protects it from cold and bad weather.
MYplus is protected against frost as it is automatically activated when regularly powered and the temperature drops below 7°C.
MADE IN ITALY
ELECTRONICS
MYplus is managed by the revolutionary CIMA (Cosmogas Integrated Modular Architecture) electronic platform, developed according to strict Cosmogas specifications.
Thanks to powerful microprocessors of the latest generation, MYplus is compatible with the most popular home automation systems.
Among its many smart functions: siphon filling, circuit degassing, flood prevention, screed drying and advanced dialogue with protocols such as 0-10 Volt and OpenTherm.
Thanks to powerful microprocessors of the latest generation, MYplus is compatible with the most popular home automation systems.
Among its many smart functions: siphon filling, circuit degassing, flood prevention, screed drying and advanced dialogue with protocols such as 0-10 Volt and OpenTherm.
CONNECT,
ADJUST, SAVE
On demand, MYplus boilers can be equipped with Comodo, an elegant and innovative remote chrono control that allows the user to programme, adjust and control the temperature for different time slots throughout the day and week on the 5” touch screen display.
Comodo is part of the ERP V class devices and, with an optional external temperature sensor, reaches ERP VI class (European Commission communication 2014/C 207/02).
Comodo is part of the ERP V class devices and, with an optional external temperature sensor, reaches ERP VI class (European Commission communication 2014/C 207/02).
CONTROL
AT YOUR FINGERTIPS
To complete the functionalities of Comodo and make it even ‘smarter’, Cosmo+ has been developed. A special App very useful for users who prefer to manage their facilities from their smartphone.
With a special focus to reducing the environmental impact, through the Cosmo+ App, the Service Centre can take action remotely (RAM - Remote Asset Monitoring); this results in a benefit in terms of time and travel costs saved, but above all, less CO2 released into the atmosphere.
With a special focus to reducing the environmental impact, through the Cosmo+ App, the Service Centre can take action remotely (RAM - Remote Asset Monitoring); this results in a benefit in terms of time and travel costs saved, but above all, less CO2 released into the atmosphere.
“SYN CHECK”
QUICK CONTROL
Using the “Syn Check” synoptic panel, with which the Comodo chrono control is equipped, the operating parameters and status of all components involved are instantly detected.
Documentation about MYplus
Are you a professional? Find the technical documentation about this product in the Professionals section.
