MYplus 50C and 60C

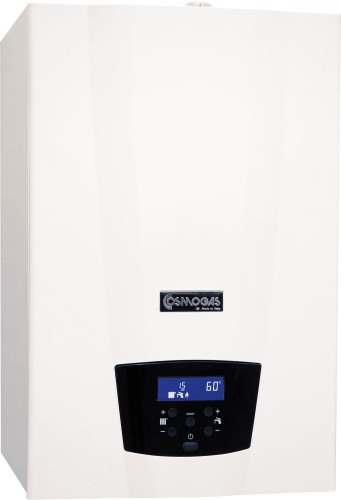

MYplus 50C and 60C is the wall-hung, commercial, heat only, gas condensing 50 and 60 kW boiler, ideal for small business and multi-family users.
Available in 50C and 60C models, with an integrated modulating pump inside the generator.
Features
Product category: Indoor commercial condensing boiler
Output: 50 - 60 kW
Suited for: Residential, Industrial, Craft sector
Connectivity: Management via advanced Wi-Fi Comodo chrono control and Cosmo+ App
The resistance of Titanium
The heart of MYplus 50C and 60C is the patented triple condensing primary heat exchanger R.V.C. (Radial Variable Circulation) completely made of AISI 316Ti (Titanium) stainless steel which consists of 3 series of water tubes, with two different diameters.
With the generous sections of the adopted tubes guarantees:
- great water flow
- wide exchange surface
- low head loss
- high working pressure
- maximum corrosion resistance
Compact, lightweight and ecologic
MYplus 50C and 60C combine light weight and high performance in a concentrate of technology and sustainability.
Only 50 kg for an output of 49.9 kW and 57.8 kW respectively.
MYplus 50C and 60C is extremely ecologic thanks to the premix burner made of “Fecralloy” fiber which develops short and perfectly nourished flames.
The patented Cosmomix system optimises air/gas pre-mixing and allows a 1:5 turndown ratio, precisely adapting the output to real system needs, guaranteeing great gas savings and low CO2 emissions into the atmosphere.
MYplus 50C and 60C is the smart choice for those who want performance, savings and respect for the environment.
Ideal even with radiators
Thanks to the innovative, wide surface, patented R.V.C. heat exchanger, the flue gases condense at 55°C heating return temperatures. An exceptional result that makes MYplus 50C and 60C perfect even for radiator systems.
Condensing guaranteed at all times, even at high temperatures!
MYplus 50C and 60C is the ideal choice not only for new installations, but also for replacements.
Comodo and Cosmo+
control at your fingertips

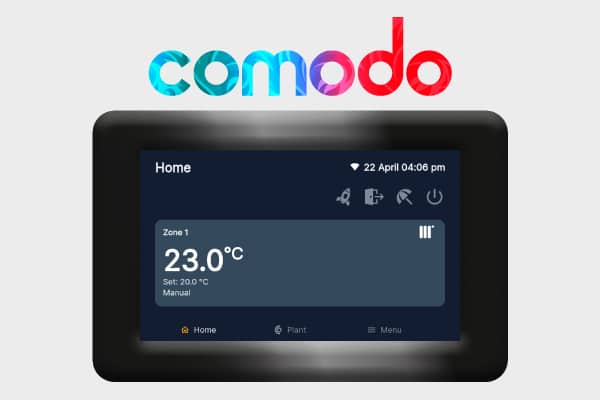

Upon request, MYplus 50C and 60C can be combined with Comodo, an elegant and innovative Wi-Fi advanced chrono control.
The user can comfortably adjust and remotely control, on the 5″ touch screen display, the temperature for different time slots throughout day and week and check operating parameters via the “Syn Check” synoptic panel.
To complete Comodo and make it even “smarter”, Cosmo+ has been developed. A special App, very useful for users who prefer to manage their facilities from their smartphone and thus have the possibility to remotely monitor the comfort.
With a special focus to reducing the environmental impact, through the Cosmo+ App, the Service Centre can take action remotely (RAM – Remote Asset Monitoring); this results in a benefit in terms of time and travel costs saved, but above all, less CO2 released into the atmosphere.
Outdoor use!

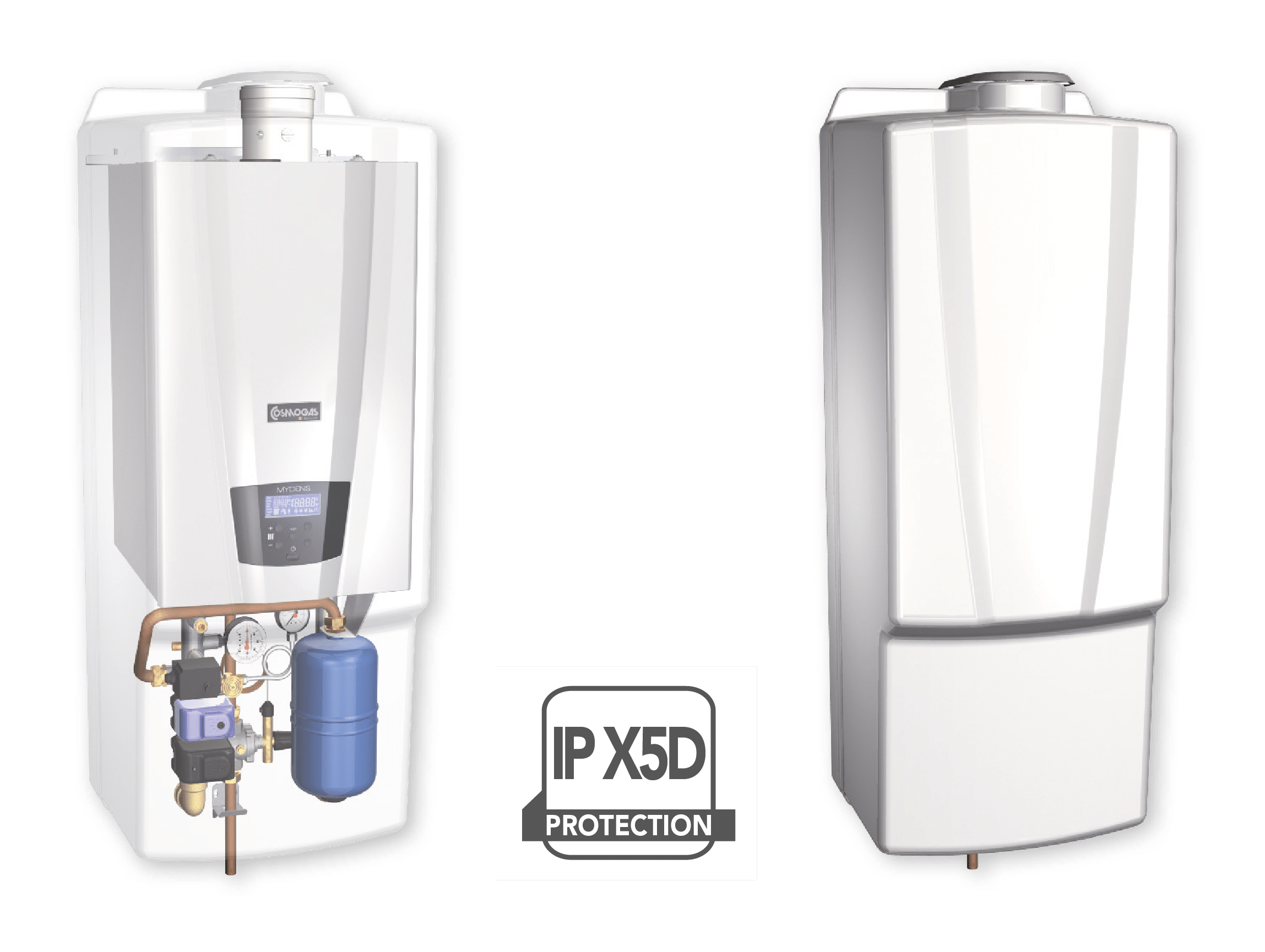

MYplus 50C and 60C is available for outdoor installation with the additional COVER-BOX, the ABS, anti-UV, weather-resistant insulated cover.
The highly insulating, fireproof polyethylene insulation provides IP X5D protection.
On demand Safety kit available, complete with shut-off gas valve and expansion vessel that can be hidden in the cover.
Details that make the difference
MADE IN ITALY
ELECTRONICS
MYplus 50C and 60C is managed by the revolutionary CIMA (Cosmogas Integrated Modular Architecture) electronic platform, developed in Italy according to strict Cosmogas specifications.
Thanks to powerful latest-generation microprocessors, MYplus 50C and 60C is compatible with the most popular home automation systems.
Among its many smart functions: siphon filling, circuit degassing, flood prevention, screed drying and advanced dialogue with protocols such as 0-10 Volt and OpenTherm.
CONNECT,
ADJUST, SAVE
MYplus 50C and 60C can be equipped on request with Comodo, an advanced Wi-Fi chrono control that allows the user to conveniently programme, adjust and control, remotely, on the 5" touch screen display, the temperature for different time slots during day and week.
Comodo is part of the ERP V class devices and, with an optional external temperature sensor, reaches ERP VI class (European Commission communication 2014/C 207/02).
Comodo is part of the ERP V class devices and, with an optional external temperature sensor, reaches ERP VI class (European Commission communication 2014/C 207/02).
APP FOR THE MOST
DEMANDING USER
To complete the functionalities of Comodo, Cosmo+ has been developed. A very useful App for the user who prefers to manage the system from a smartphone and have the possibility of monitoring comfort remotely.
With a special focus to reducing the environmental impact, through the Cosmo+ App, the Service Centre can take action remotely (RAM - Remote Asset Monitoring); this results in a benefit in terms of time and travel costs saved, but above all, less CO2 released into the atmosphere.
With a special focus to reducing the environmental impact, through the Cosmo+ App, the Service Centre can take action remotely (RAM - Remote Asset Monitoring); this results in a benefit in terms of time and travel costs saved, but above all, less CO2 released into the atmosphere.
“SYN CHECK”
QUICK CONTROL

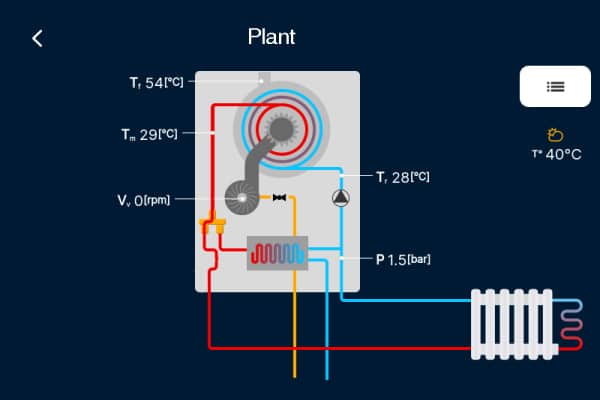

Using the “Syn Check” synoptic panel, with which the Comodo chrono control unit is equipped, the operating parameters and status of all components involved are instantly detected.
Documentation about MYplus 50C and 60C
Are you a professional? Find the technical documentation about this product in the Professionals section.
