AGUAdens T

AGUAdens T from 70 to 280 kW is the range of commercial autonomous modulating condensing water heaters, completely patented and built by Cosmogas.


AGUAdens T are designed to be “space-saving”; thanks to their vertical structure they allow to save space in both new and to renovate thermal power plants.


They supply water in continuous up to 160 l/min (Δt 25°C).


 Thanks to their lightness they are easy to carry and to place inside thermal power plants.

Features

Product category: Indoor floor standing commercial water heater

Output: 70 - 100 - 115 - 140 - 180 - 210 - 280 kW

Suited for: Commercial, Industrial, Service Industry

Hot water heat exchanger: TITANIUM Stainless STEEL corrosion and chlorinated water resistant

Domestic hot water: up to 160 l/h (Δt 25°C)

Deductions: Eligible for tax credit where offered





Always a lot of condensing hot water

Each commercial water heater is composed of 1 to 4 patented AISI 316 Ti Titanium 70 kW R.V.C. heat exchangers: a “monoblock” system that optimises the supplied output according to real D.H.W. needs ensuring maximum efficiency.


The presence of more heat exchangers always guarantees continuity of service in case of maintenances or breakdowns.

A heart of Titanium resistant to corrosion and to pressure…
up to 11 bar

Cosmogas is the only manufacturer who can offer a Titanium primary heat exchanger that can be directly supplied by mains water guaranteeing a great resistance to corrosion, the aggressivness of chlorinated waters and high pressures of sanitary circuits up to 11 bar.


Thanks to low inlet temperatures the R.V.C. exalts the condensing effect and supplies D.H.W. even at high temperatures, maximizing savings and reducing to minimum the thermal inertia.

Domestic Hot Water always guaranteed in continuous and during peak periods

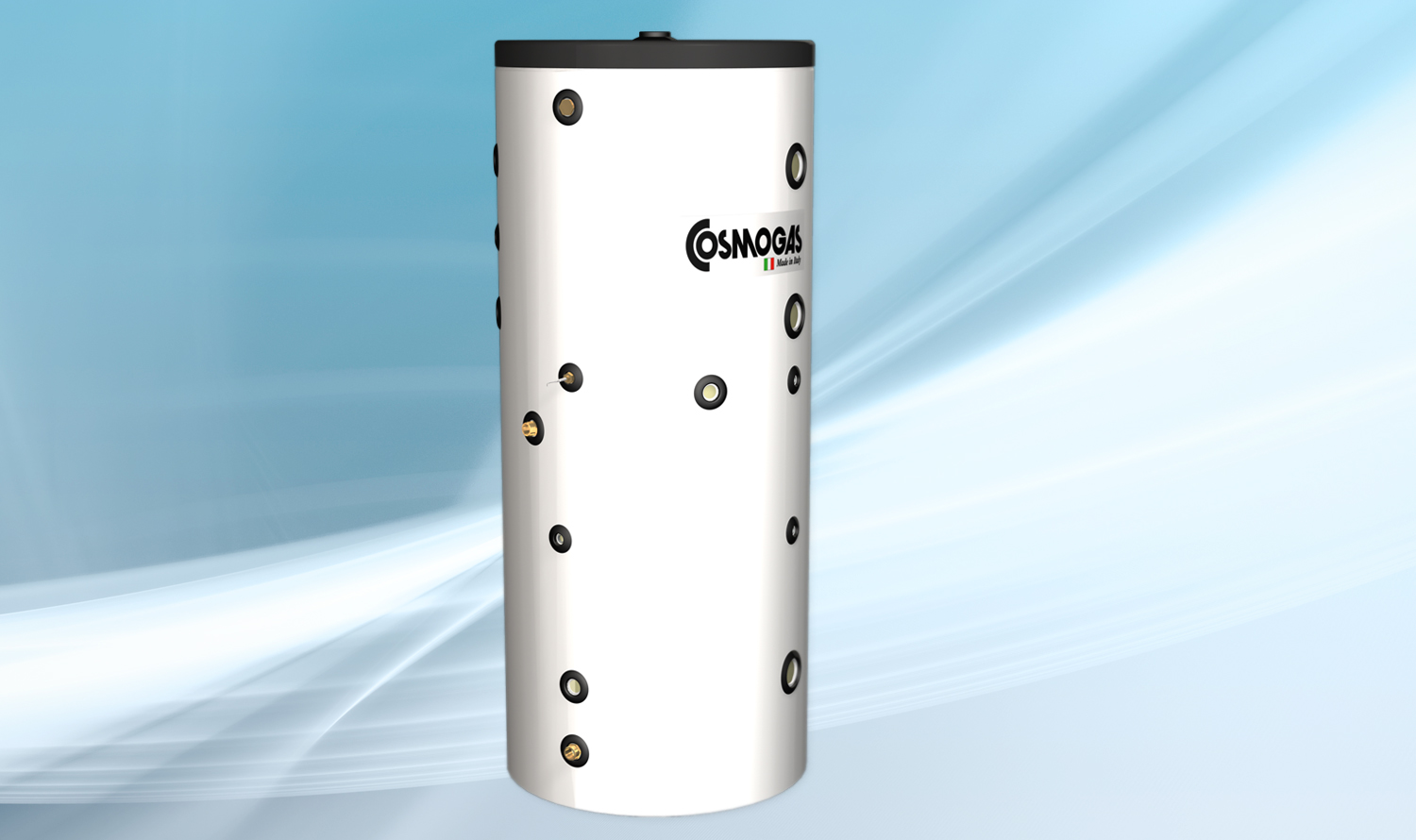

To streamline AGUAdens T performance Cosmogas has designed MULTItank, an inertial water storage tank of 200 – 300 – 500 – 800 – 1000 litres capacity.


In this way the system AGUAdens T + MULTItank guarantees D.H.W both in continuos and during peak periods and it is perfect for all industrial and tertiary applications with high domestic hot water demand: hotel, campings, restaurants, apartment buildings, canteens, schools, sport centers, wellness centers, hospitals.

Ideal in new and renewal of thermal power plants

In many cases, domestic hot water production systems are made up of large storage tanks that, besides favoring the proliferation of bacteria, occupy a lot of space on the ground and are characterized by considerable energy dispersion and waste.


Depending on real user needs, the system AGUAdens T by Cosmogas, allows to always choose the right balance between output and storage.


AGUAdens T + MULTItank excellent performance even with extremely low accumulations (1 liter x kW) and thanks to the multi-burner configuration, it supplies the right output to heat only the water that is needed without waste and minimizing energy consumption.

Up to 535 l/min in cascade sequence

AGUAdens 280 T water heaters can be connected in cascade sequence up to 4 units to reach 1176 kW maximum output and they can supply domestic hot water up to 535 l/min at Δt 30°C.


AGUAdens 280 T cascade sequence operating is controlled by

  • 885HC controller that manages the rotation and sequence
  • or remotely managed by TUTORbit thermoregulator
Details that make the difference

COVER-BOX T
Safe against bad weather

AGUAdens T is available for outdoor installation with the additional COVER BOX T, the CE certified, fireproof, weather-resistant cover, made of anodised aluminium that provides IP X5D electric protection degree. Its reduced size and elegant design make its placement easy. Possibility of remote control via 885IF 0-10V interface.

Variable stainless steel modulating recirculating pump

The advanced on-board electronics allow the domestic hot water producerAGUAdens T to directly manage the constant pressure stainless steel body pump of the primary circuit (available on demand) that in combination with the 2-way motorized valves guarantees the perfect balance between supplied output and water flow, maximizing the condensing.

TUTORbit: Manage your installation remotely

TUTORbit regulates the operating up to 4 AGUAdens T water heaters in cascade sequence managing a sequenced lighting and modulating from the lowest output of one single water heater to the highest output of 4 water heaters working at full speed, ensuring rotation for fair aging.

TUTORbit is compatible with main browsers e and allows cloud remote control of the system via PC, tablet and smartphone.
